Basic Model Automatic Booster System High Pressure Pump Station

FOB Reference Price:Get Latest Price
US $47.8-57.9 / Piece | 50 Piece/Pieces , 300pcs on customer color box (Min. Order)
Supply Ability:
20000 Piece/Pieces per Month , 800-1000pcs per day
Port:
NINGBO/SHANGHAI
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TRUPOW
Model Number:
TP03106
Theory:
Jet Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
High Pressure
Application:
Gardening water
Certification:
CE,GS,RoHS, EMC
Color:
Yellow, Red, Green, Blue, orange
Thermal Protector:
Yes
Sample:
For Free
HS CODE:
8413609090
OEM Service:
Accepted
Quality System:
IS09001:2000
Package:
Carton Packing
Warranty:
one year
Cable:
1,2m
Packaging & Delivery
Packaging Details
Each Pump be well packed in a stronger master brown carton
Delivery Time
Shipped in 35 days after payment

Basic Model Automatic Booster System High Pressure Pump Station



Product Description



It is ideal for conveyance of clean waterThey are very silent and reliable and particularly Suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.



This pump shall not be used to convey abrasive materials, silt materials, slurry, or other viscous materials, and shall not be suitable for long time continuous operation (e.g. cyclic running in filter of swimming pond or act as industrial equipment).



Features



Garden Pump With Pressure Tank

Build-in overload motor protector with automatic reset

Booster system with pressure tank

Protection IPX4

Pump Head: plastic

Impeller: PPO, brass if request

Tank: iron

Liquid temperature: Up to  35°C

Dry-running of pump shall be prohibited.



Specification:



MODEL
POWER
(W)
MAX HEAD
(M)
MAX FLOW
(L/H)
MAX SUC. DEPTH
(M)
MAX PRE.
(BAR)
CABLE AND LENGTH
(M)
QTY/20”CTN
(PC)
TP03105
600
35
2800
7
2/3
H07RN-F3G1.0mm2X1.2m
380
TP03106
800
40
3200
8
2/3
H07RN-F3G1.0mm2X1.2m
380
TP03107
1000
44
3500
8
2/3
H07RN-F3G1.0mm2X1.2m
380
TP03108
1200
48
3800
8
2.5/4
H07RN-F3G1.0mm2X1.2m
380



Performance Chart:

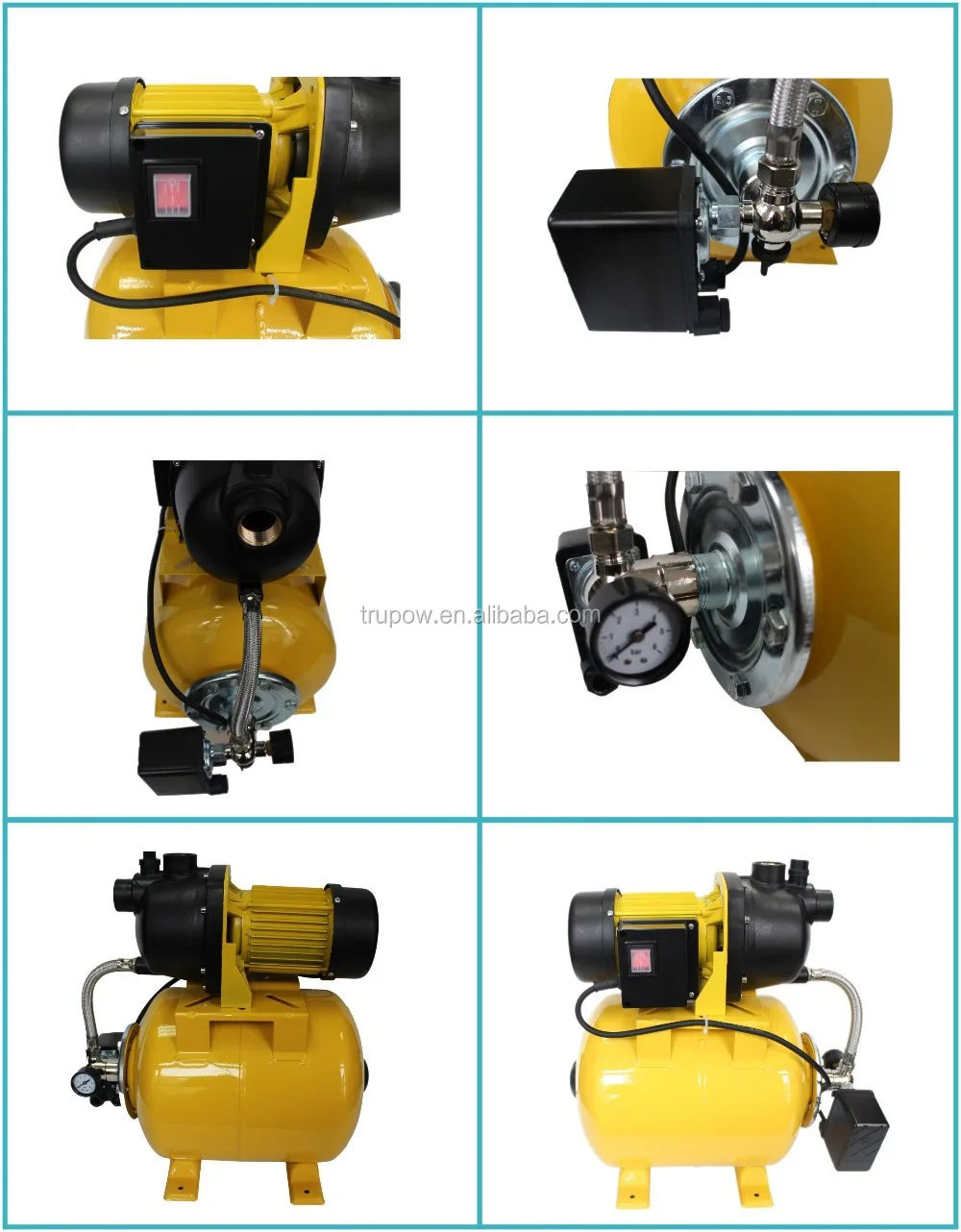

Product More Photos
